FILLING MACHINES
HM FDKM-004 AUTOMATIC FILLING AND CAPPING MACHINE WITH FLOW METER 5000
-
LENGTH 135 cm -
WIDTH 165 cm -
HEIGHT 200 cm -
WEIGHT 2000 kg -
CONSUMPTION kWh
| CONTROL SYSTEM | SIEMENS - BECKHOFF – PLC |
| CHASSIS AND BODY COMPONENTS | 304 – 316 STAINLESS STEEL |
| SEALING ELEMENTS | PTFE – TEFLON – VITON |

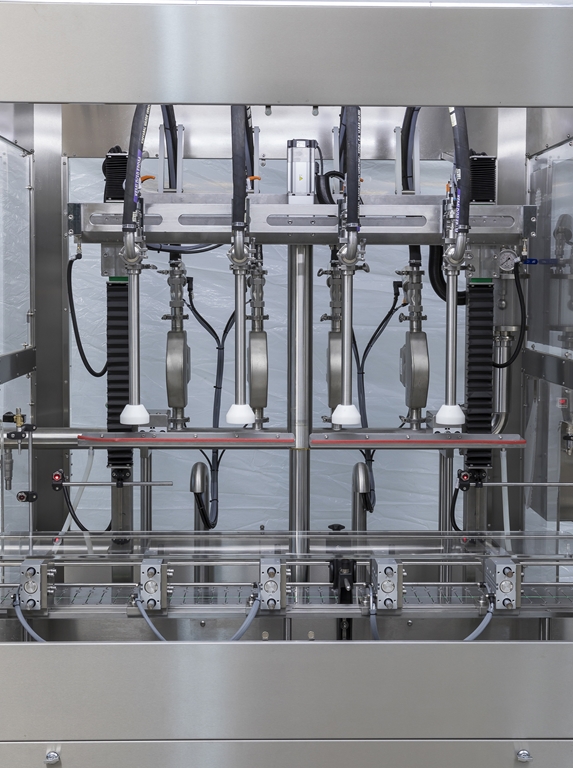

| FILLING SYSTEM and MODEL | WITH FLOW METER – Endress Hauser |
| FILLING VOLUME | 5000 – 30,000ml |
| FILLING ACCURACY | ±0.3ml |

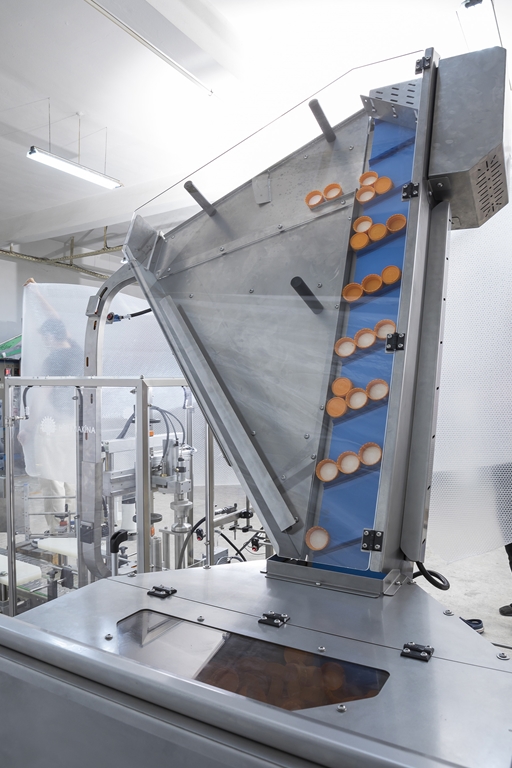

| CAP FEEDING (OPTIONAL) | INDEPENDENT ELEVATOR BELT SYSTEM |

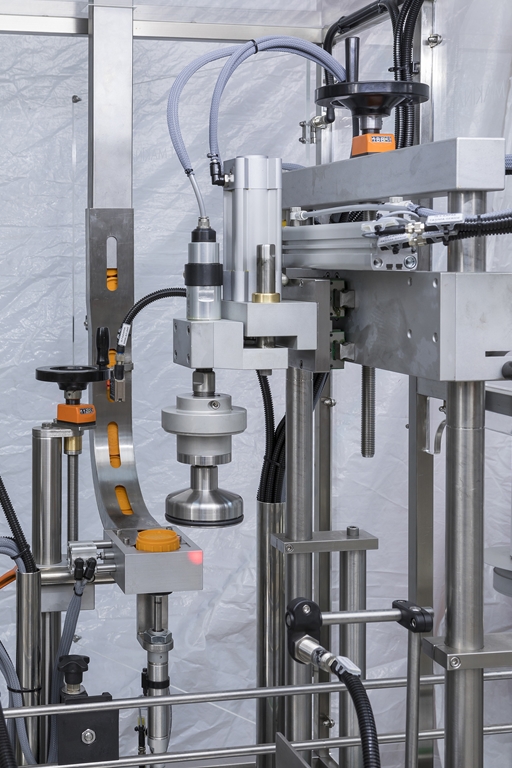

| CAPPING SYSTEM | SERVO-DRIVEN CAP PICK-UP AND TORQUE CONTROL |
| PNEUMATIC COMPONENTS | FESTO – SMC – CHELIC |
| AIR CONSUMPTION | 800 liters/min @ 8 BAR |
| ENERGY CONSUMPTION | 380 VOLT 4KW |
| CAPACITY | 300 – 1000 PIECES/HOUR |
| WARRANTY | 2 YEARS EXCLUDING ELECTRICAL AND PNEUMATIC COMPONENTS |
